Home > Extrusion Molding Machine >

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Product Categories

Zhangjiagang Eceng Machinery Co.,Ltd

Contact Now

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Ask Lasest Price
Brand Name :	Eceng
Model Number :	YC-2L
Certification :	CE&ISO&SGS
Price :	10000-20000USD per set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10sets per month
Delivery Time :	40working days

Add to Cart

Product Details
Company Profile

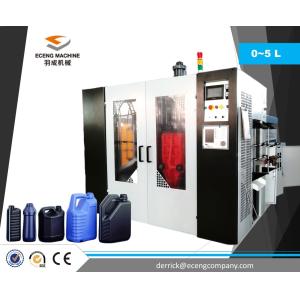

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Extrusion HDPE plastic bottle blow molding machine

Condition:New

Application:Bottle

Plastic Processed:PE

Blow Moulding Type:Extrusion Blow Moulding

Automatic:Yes

Voltage:380V

Power(W):15KW

Dimension(L*W*H):3.0*2.0*2.0M

Weight:6.5T

Certification:CE, ISO9001:2008

Warranty:One Year Guarantee

After-sales Service Provided:Overseas service center available

Shape mode:Double station

Extruder screw diameter:65mm

Product range:50ml to 2L

Clamping unit:Hydraulic/penumatic/bosster cylinder

Packaging Details: Covered by standard waterproof film,fixed in container.

Delivery Detail: Shipped in 35 days after payment

Product Description

Double station extrusion blow molding machine

Model:YC-2L

(1)	Double station/single layer, 65mm screw/15kw motor, for PE/PP/PVC material
(2)	Output	e.g 50ml------3000pcs/hour 500ml-------1500pcs/hour 1000ml------- 900 pcs/hour
(3)	Die-head	1 to 4 cavities,center feed design
(4)	Electrical control	MITSUBISHI PLC&Touch Screen and Schneider electric parts
(5)	Hydraulic system:	YUKEN oil pump,assure stable mold traverse
(6)	Working condition:	Power supply——380VAC, 50Hz (depending on client's country)
		Water source——5HP Water chiller
		Air source——0.6Mpa, 0.6m3/min (1.2 m3/min air compressor)

Application

Capable for 50ml to 2L hollow plastic product with PP/PE/PVC/TPU/PA

extrusion HDPE plastic bottle blow molding machine

Paremeter

Item	Unit	Parameter
Basic Specification
Raw material	/	PE/PP/PA/PVC etc.
Dimension	m	3.0×2.0×2.0
Total Weight	kg	6500
Extrusion system
Diameter of screw	mm	65
Screw L/D ratio	L/D	25:1
Plasticizing capacity	kg/h	70
Number of heating zones	pcs	5
Extruder heating power	kW	15
Extruder drive power	kW	15
Die head
Number of heating zones	pcs	2
Heating power	kW	4
Clamping system
Clamping range	mm	150-200
Sliding Distance	mm	360-400
Clamping force	KN	60
Power consumption
Air pressure	Mpa	0.6
Air consumption	m3/min	0.4
Cooling water pressure	Mpa	0.3
Cooling water consumption	m3/h	1.2
Oil pump power	kW	7.5
Oil pump capacity	ml/r	47
Total Power	kW	41.5
Average power Consumption	kW	17

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

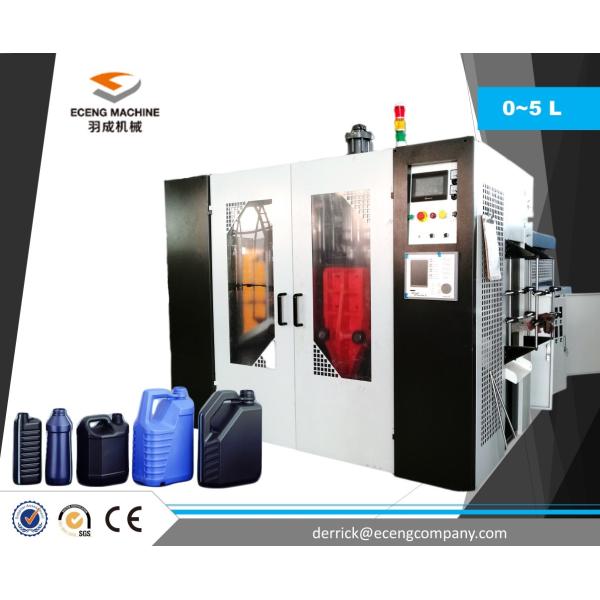

Model dispaly

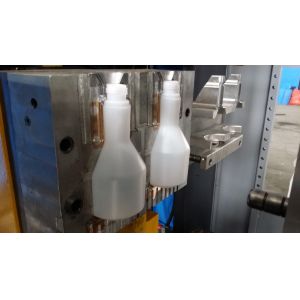

extrusion HDPE plastic bottle blow molding machine

Packaging & Shipping

Our Services

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.
