Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

Ask Lasest Price
Brand Name :	Eceng
Model Number :	YC-2L-4
Certification :	CE&ISO&SGS
Price :	5000-10000USD Per set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10sets per month
Delivery Time :	25working days

Add to Cart

Product Details
Company Profile

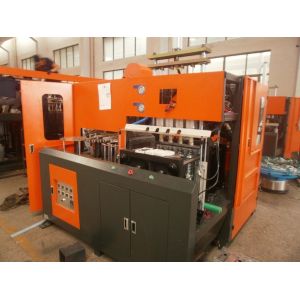

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

YC-2L-4 semi auto utomaticwater tank blow molding machine with auto loader

Semi-automatic blow moulding machine

l Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the

timing very precisely.Use life durable and failture rate very low.It’s the revolutionary product of industrial control.

l High responsiveness pneumatic components,action timely and precisely

l Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation

l Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

Main machine (blower + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	2L
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	4
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)	Adjustable
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	2600-2800(500ml bottle)
	Machine size(LxWxH)(m)	1.460.581.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.350.551.15
	Oven weight (KG)	300

Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

Packaging & Shipping

packed in wooden cases or film according to the requirement of customers Easy Operation Plastic Water Tank Manufacturing Machine With Automatic Loader

Our Services

After sales service

1) Free charge for mould design

2) Free charge to provide spare parts for one year

3) Engineers available to install and test machine overseas

4) 1 year warranty and lifetime maintenance
